PLANITHERM® XN and PLANITHERM® XN II
Thermal insulation
STANDARD LOW-E GLASS FOR WINDOWS APPLICATIONS
Read more
Read less
STANDARD LOW-E GLASS FOR WINDOWS APPLICATIONS

PRODUCT DESCRIPTION

PLANITHERM® XN (II) is Saint-Gobain reference low emissivity (or low-e) glass for insulating glass units, mainly for windows application, but also for commercial refrigeration.
It is made of a clear glass on which magnetron sputtering under vacuum deposits a thin silver based transparent coating. The coating reflects the far infrared radiation which prevents heat from escaping through your windows to the cold outdoors, bringing more energy efficiency than with old double glazing without low-e coating (before 2000’s).

Refer to ECLAZ® (II) for even more transparency, winter comfort and energy efficiency in residential and non-residential buildings equipped with windows.

BENEFITS & APPLICATIONS

PLANITHERM® XN (II), low-e coated glass, can be used in all insulating glass units, for new buildings or renovation works in residential or non-residential buildings equipped with windows.

PLANITHERM® XN II is available on demand with EASYPRO®, revolutionary and temporary surface protection developed and proposed exclusively by Saint-Gobain.
Deposited on to-be-tempered coated glass, it delivers effective protection against mechanical damage as well as ageing, during transport and processing, from deposition of the coating until tempering. During tempering, EASYPRO® simply burns off without leaving any residue inside or outside the furnace and without any negative impact on the environment or personal health and safety.

EPD et C2C Logos

PLANITHERM® XN (II) is covered by a verified Environmental Product Declaration (EPD) and is cradle to cradle bronze certified.

PLANITHERM® for glass door of refrigerated cabinet


Leveraging its expertise in developing high-performance glass for windows, Saint-Gobain Glass offers best products of the PLANITHERM® range to provide ultimate glazing solutions for vertical commercial refrigeration glass door cabinets.


Everywhere in retail shops and supermarkets, where the internal temperature of refrigeration cabinets significantly contrasts with the ambient temperature of the store, the PLANITHERM® range  (PLANITHERM® ULTRA N II / PLANITHERM® XN II), assembled in Double Glazing Unit or Triple Glazing Unit, excels in maintaining superior insulation, and offering a high transparency. This low-e range effectively reduces the energy consumption of the cabinets, thereby enhancing their overall energy efficiency.


This approach benefits businesses by lowering operational costs and contributes to a notable reduction in their carbon footprint, making PLANITHERM® the perfect choice for stakeholders in this sector committed to implementing more sustainable practices.



calucool


Looking for more configurations? Please contact your local sales representative who can give you a quick evaluation of your fridge glass door performances thanks to our exclusive calculator Calucool

APPEARANCE

PLANITHERM® XN (II) is one of the most transparent and neutral coated glasses on the market. Only ECLAZ® (II) coated glass presents higher light transmission and better aesthetics.


GlassPro_PlanithermXN



TECHNICAL INFORMATION

RANGE

SUBSTRATE:                         PLANICLEAR® (clear glass)

THICKNESS:                          From 3 mm to 10 mm

SIZE:                                     Standard size (Jumbo 3.21 x 6.00 m)
                                             Standard stock size
                                             Overlength (up to 18m, for to-be-tempered version)

PLANITHERM® XN (II) is also available on demand in more tailor-made size (split length), thicknesses, on laminated glass, and on extra-clear DIAMANT® glass or for production or design optimization.

EASYPRO® is available on demand on PLANITHERM® XN II glass for thicknesses from 4 mm to 12 mm. Please check with your local sales team.

PROCESSING

For technical information regarding processing of PLANITHERM® XN (II), please refer to processing guidelines documents.

PLANITHERM® XN (II) exists in laminated version to offer safety (STADIP® PROTECT) or sound insulation (STADIP® SILENCE), and even in light configurations where carbon footprint is minimized and handling is easier. They can be also combined with easy maintenance and design functions.

  • ANNEALED: The product is available in Annealed version.
  • HEAT-TREATMENT: The product is available in To-be-tempered version (with suffix II)
  • EDGE DELETION: Edge deletion of the coating is compulsory prior to assembling.
  • INSULATED GLAZING UNIT: The product must be assembled into an insulated glazing unit (IGU); The coating must be positioned inside the IGU.
  • LAMINATION: The product can be laminated, taking care to place the coating outside of the laminate (coating on face 4 of the laminated pane).
  • BENDING: The to-be-tempered version of the product (II) can be bent. Bending results depend on the process/technology used; trials should be done for validation
  • ENAMELING: No common approval for the enameling of silver-based high-performance coatings.
  • Annealed and the to-be-tempered versions of the product offer similar performances and aesthetic with a good compatibility in outdoor reflection. Contact us for more details.

AVAILABILITY

The product is available in all Europe.

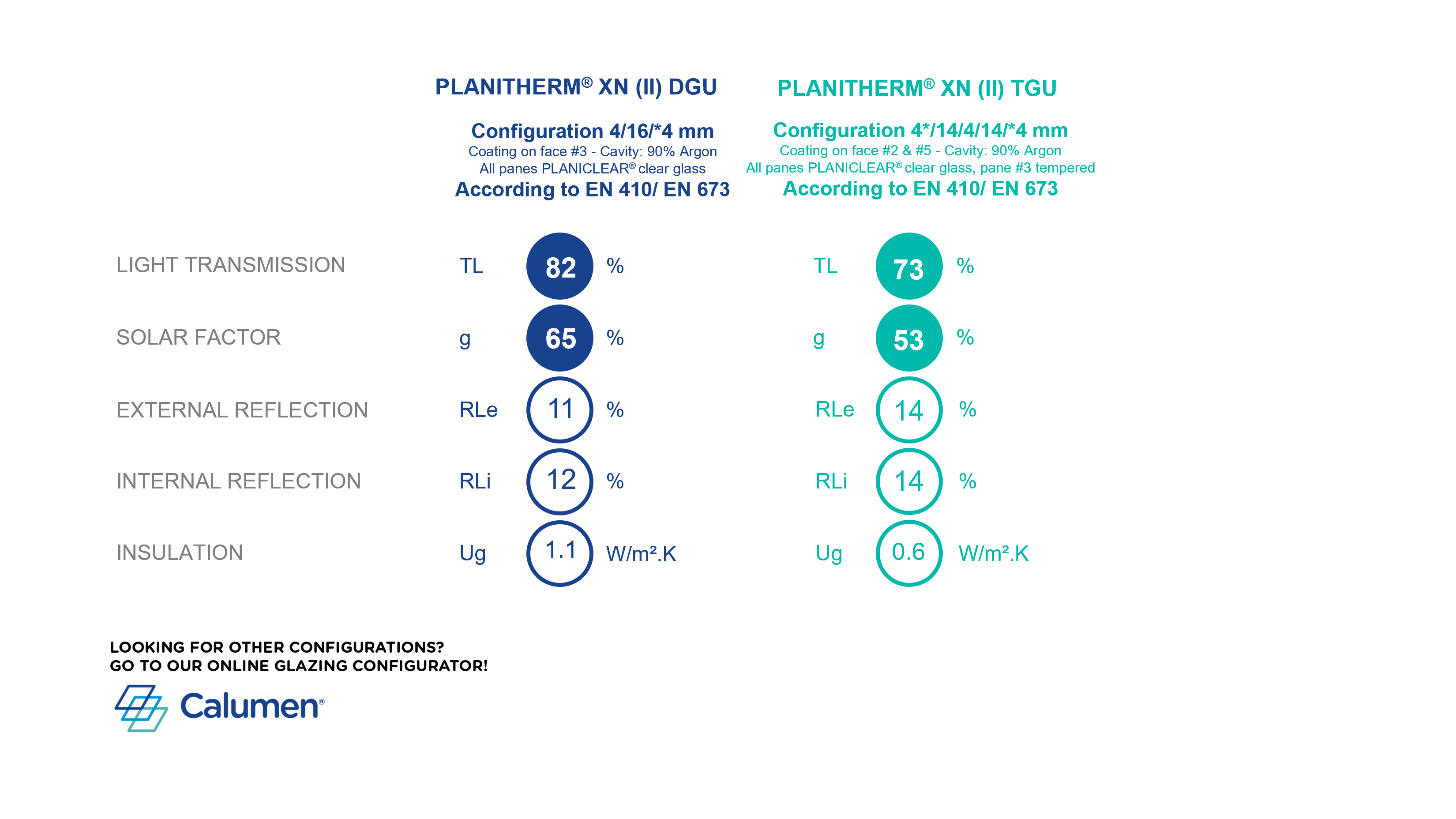

PERFORMANCE

PLANITHERM XN (II)
