COOL-LITE® XTREME 51/23 & 51/23 II
PRODUCT DESCRIPTION
This product replaces the COOL-LITE® XTREME 50/22 II, bringing not only a more modern neutral aesthetic but also an annealed version of the product.
BENEFITS & APPLICATIONS
By choosing COOL-LITE® XTREME 51/23 (II), projects gain access to the forefront of solar control innovation, a versatile solution that meets aesthetic ambitions, technical demands, and environmental goals - all in one refined product.
- With a light transmission of 51% and a solar factor of just 23%, it offers exceptional selectivity above 2.2, maximizing daylight while reducing energy consumption and operational costs.
- With a sleek, neutral aesthetic with minimal reflection, these coatings strike a perfect balance between visual appeal and technical performance - ideal for modern architecture.
- With annealed and to-be-tempered versions with similar performance and aesthetic, it adapts to several architectural vision, and blends seamlessly into multiple purpose and possibility.
- Combined with ORAÉ® low-carbon glass, it provides the best of both embodied and operational carbon levels.
COOL-LITE® XTREME 51/23 (II) features an extremely selective solar control coating primarily for use in the commercial and premium building market. Due to the high performance of the coating, it is ideally suited for use in large, glazed facades or overhead glazing requiring a low solar factor, thus enhancing occupant visual and thermal comfort, by ensuring a pleasant indoor climate, making even the sunniest spaces liveable, for example:
• Offices
• Healthcare
• Education
• Other
Its middle/high light transmission together with the low solar factor makes it the ideal product to create light spaces and to provide all year long natural lighting and energy saving. The combination of low reflection and neutral aspect makes it the ideal product for modern architecture, with large glass panes, also in hot climate. It might prevent the use of shading systems and shutters, and thus can be used in renovation of historic building.
COOL-LITE® XTREME 51/23 (II) is also available on ORAÉ® low-carbon glass, to combine performance and sustainability and provide the best of both embodied and operational carbon levels.
This product is covered by a verified Environmental Product Declaration (EPD) and is cradle to cradle bronze certified.
APPEARANCE
COOL-LITE® XTREME 51/23 (II) offers colour neutrality whatever the viewing angles with outstanding performances and selectivity.
TECHNICAL INFORMATION
RANGE
SUBSTRATE: PLANICLEAR® (clear glass)
DIAMANT® (extra clear glass)
ORAÉ® (low-carbon glass)
THICKNESS: From 3mm to 12mm
SIZE: Standard size (Jumbo 3.21 x 6.00 m)
Standard stock size
Overlength (up to 18m)
PROCESSING
- ANNEALED: The product is available in Annealed version.
- HEAT-TREATMENT: The product is available in To-be-tempered version (with suffix II); It is delivered in standard with EASYPRO® temporary surface protection. To achieve its performance and aesthetics, the product must be tempered. It is compatible with Heat Soak Test.
- EDGE DELETION: Edge deletion of the coating is compulsory prior to assembling.
- INSULATED GLAZING UNIT: The product must be assembled into an insulated glazing unit (IGU); The coating must be positioned on the face 2 (inside the IGU).
- LAMINATION: The product can be laminated, taking care to place the coating outside of the laminate (coating on face 4 of the laminated pane).
- ENAMELING: No common approval for the enameling of silver-based high-performance coatings.
AVAILABILITY
The product is available WORLDWIDE.

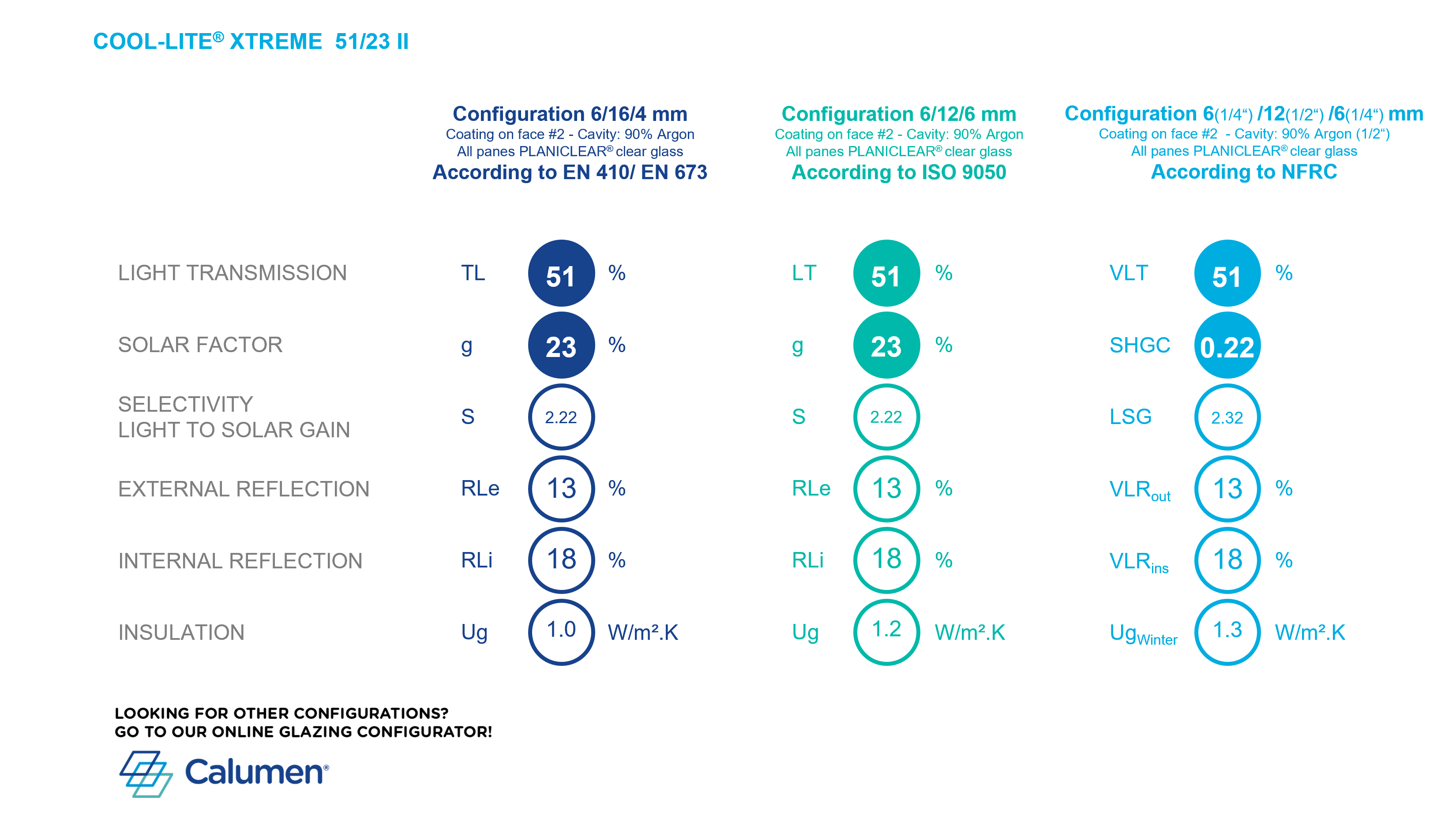

PERFORMANCE
Looking for more configurations? Go to our online glazing configurator: www.calumen.com
