VISION-LITE® II
PRODUCT DESCRIPTION
Manufactured from clear float glass, VISION-LITE® II features a thin transparent anti-reflective coating deposited on both sides of the glass by magnetron sputtering. The final optical properties are achieved through glass thermal tempering, reaching remarkable clarity and efficiency.
BENEFITS & APPLICATIONS
- Extremely clear visibility through the glass is guaranteed, with significantly reduced light reflectance compared to standard glass, enhancing the display of goods with excellent contras .
- Versatile applications: Ideal for several types of refrigerated display cabinets and commercial freezers, catering to food stores, convenience stores, supermarkets display in museography
- Energy-efficiency: in option VISION-LITE® II on one side of the glass, can be associated to a low-E coating PLANITHERM® ULTRA N II on the other side. SEMI VISION-LITE® II UN II combine performant anti-reflective properties, extreme transparency, and thermal insulation.
- Safety: Once tempered, VISION-LITE® II and SEMI VISION-LITE® II UN II become safety tempered glasses
- Double glazing/ Triple glazing: VISION-LITE® II can be assembled in IGU providing design and insulation.
- The anti-reflective surface is easy to maintain. It is food compatible and meets hygiene standards.
- VISION-LITE® II and Semi VISION-LITE® II UN II are Cradle-to-Cradle Certified® V4.0 at Bronze level on the latest version of the standard across all five C2C categories.
APPEARANCE
VISION-LITE® II presents a crystal-clear, anti-reflective surface that ensures excellent visibility, avoiding the unwanted glare.
TECHNICAL INFORMATION
RANGE
VISION-LITE® II (with an anti-reflective coating on sides #1 and #2) is available in 4 & 6 mm thickness in jumbo sizes (6000 x 3210 mm) on clear float glass.
SEMI VISION-LITE® II UN II (with an anti-reflective coating on side #1 and low-E coating on side #2), is available in 4 mm and in jumbo sizes.
Contact your local sales representative for other sizes, thicknesses, or other options (eg one coated side only).
PROCESSING
To achieve optimal results, kindly follow the following instructions:
- After cutting and edge working, both VISION-LITE® II and SEMI VISION-LITE® II UN II require tempering to achieve their declared performances.
- SEMI VISION-LITE® II PLANITHERM® UN II must be assembled in Insulated Glass Units (IGUs), with the edged low-E coating placed inside the cavity.
- Refer to the Processing Guidelines or consult the local Technical Support Manager for further assistance.
AVAILABILITY
Please contact your local sales representative.

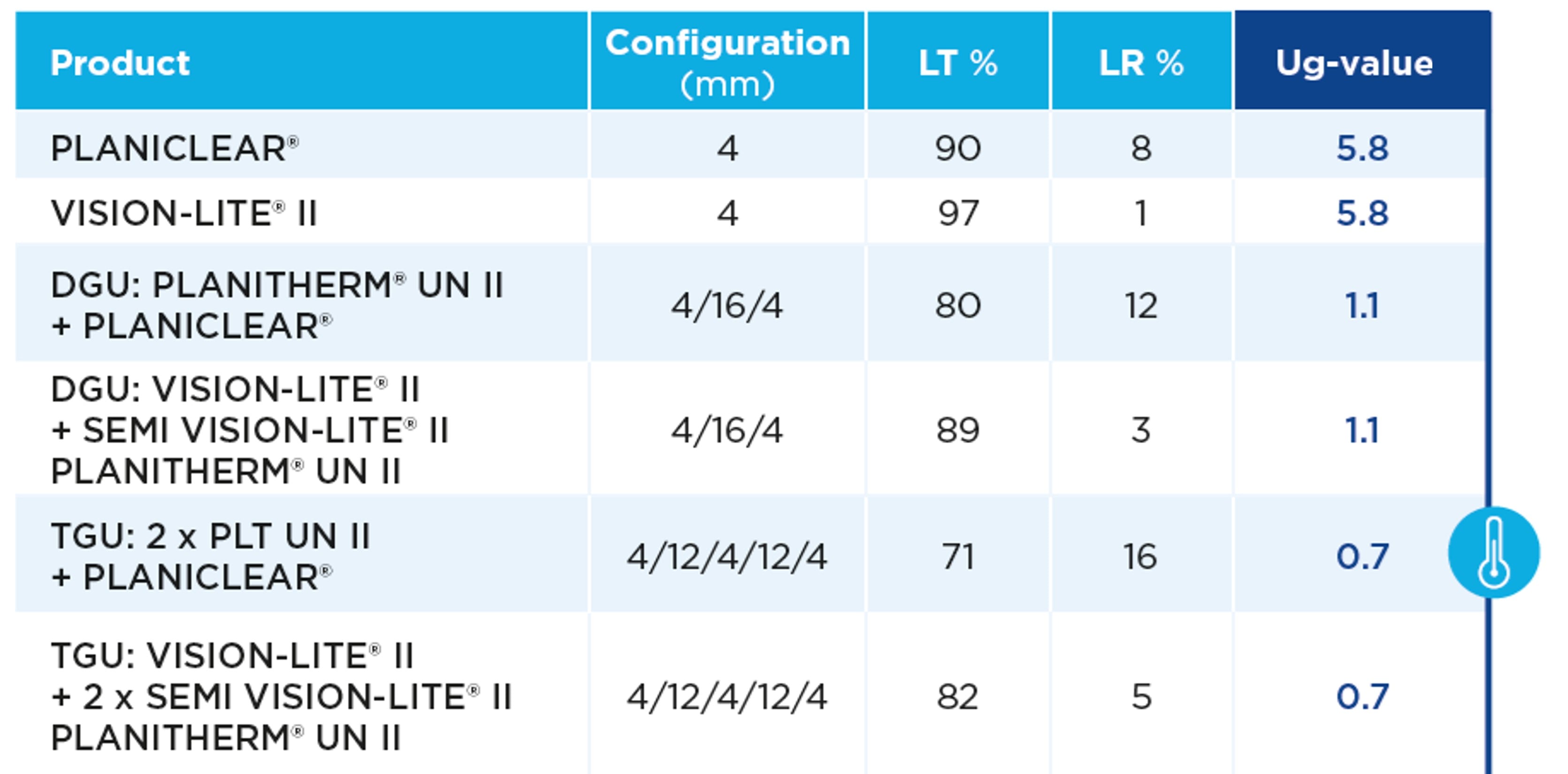

PERFORMANCE
VISION-LITE® II complies with the requirements of the EN 1096 standard, ensuring high-quality performance.
Residual reflectance is minimal, approximately 1%. It is however still visible under certain lighting conditions and viewing angles, with a slightly bluish hue when viewed perpendicular to the glass.
Looking for more configurations? Please contact your local sales representative who can give you a quick evaluation of the fridge glass door performances, based on our exclusive calculator CalucooL
