COOL-LITE® SKN 175 & 175 II

Solar control

Thermal insulation

HIGHLY SELECTIVE SOLAR CONTROL COATING

Read less

HIGHLY SELECTIVE SOLAR CONTROL COATING

PRODUCT DESCRIPTION
BENEFITS & APPLICATIONS
APPEARANCE
TECHNICAL INFORMATION
PERFORMANCE
TECHNICAL DOCUMENTATION & CERTIFICATION

PRODUCT DESCRIPTION

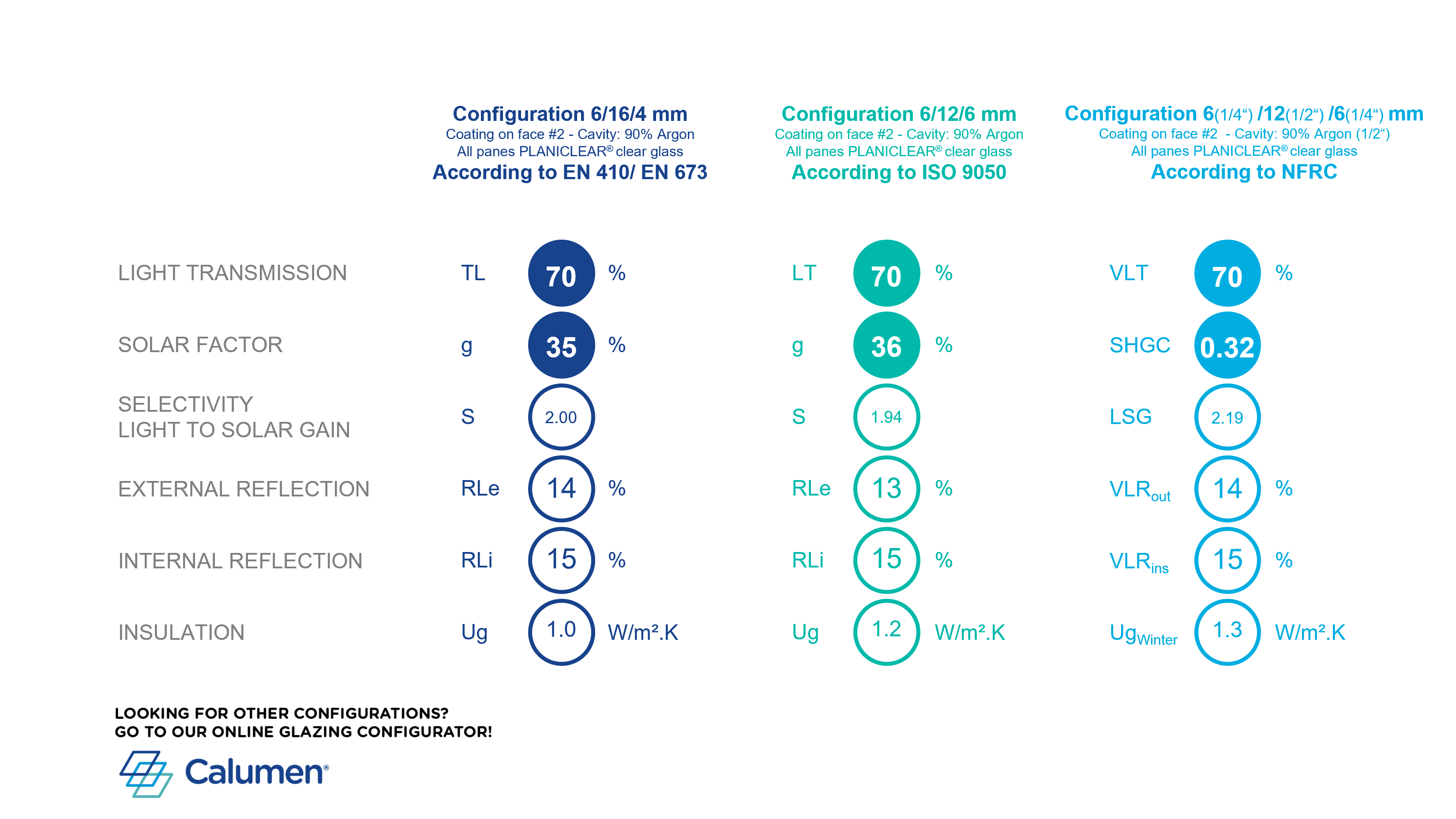

COOL-LITE® SKN 175 and SKN 175 II, respectively annealed and to-be-tempered versions, help not only to answer to every design and safety needs, but also to tighter regulation and energy saving requirement thanks a high light transmission (TL=70%) combined with a low solar factor (35%)1 for an outstanding selectivity of 2.00.

BENEFITS & APPLICATIONS

COOL-LITE® SKN 175 (II) is a highly selective, solar control glass with leading aesthetics. A product developed to enable adaptability.

•   Adapt to climate change and the need for glazing that delivers enhanced, sustainable performance, a robust solution to the growing demands for reduced energy consumption and CO2 emissions.
•   Adapt to all applications, for offices, mixed use, education, or health sectors, offering maximum daylight in all buildings, for new build as well as refurbishment projects.
•    Adapt to a diverse, new way of living and working, in a fast, changing world, Saint-Gobain supports your business with high performance products, tools and services.
•   Adapt to every design, outstanding glazing performance doesn’t mean complex processing. A more innovative solar control glass, that’s as straightforward to process as existing SKN products, with the added benefits of EASYPRO®.

COOL-LITE® SKN 175 (II) is ideal for all types of facades in commercial buildings and residential buildings, where high daylight income is requested, with no compromise on performances.

COOL-LITE® SKN 175 (II) is also available on ORAÉ® low-carbon glass, to combine performance and sustainability and provide the best of both embodied and operational carbon levels.

This product is covered by a verified Environmental Product Declaration (EPD) and is Cradle to Cradle Certified^® V4.0 Bronze.

APPEARANCE

With COOL-LITE^® SKN 175 & 175 II, your project benefits from the latest innovation in high performance solar control coatings. They offer colour neutrality whatever the viewing angles,and low reflection level with outstanding performances.

TECHNICAL INFORMATION

RANGE

SUBSTRATE: PLANICLEAR^® (clear glass)
DIAMANT^® (extra clear glass)
ORAÉ^® (low-carbon glass)

THICKNESS: From 4 mm to 10 mm
To-be-tempered version up to 12mm

SIZE: Standard size (Jumbo 3.21 x 6.00 m)
Standard stock size
Overlength (up to 18 m, for to-be-tempered version)

PROCESSING

ANNEALED: The product is available in Annealed version.
HEAT-TREATMENT: The product is available in To-be-tempered version (with suffix II); It is delivered in standard with EASYPRO^® temporary surface protection. To achieve its performance and aesthetics, the product must be tempered. It is compatible with Heat Soak Test.
EDGE DELETION: Edge deletion of the coating is compulsory prior to assembling.
INSULATED GLAZING UNIT: The product must be assembled into an insulated glazing unit (IGU); The coating must be positioned on the face 2 (inside the IGU).
LAMINATION: The product can be laminated, taking care to place the coating outside of the laminate (coating on face 4 of the laminated pane). Consult us for the list of coating validated in contact with the interlayer.
BENDING: The to-be-tempered version of the product (II) can be bent. Bending results depend on the process/technology used; trials should be done for validation.
ENAMELING: No common approval for the enameling of silver-based high-performance coatings.
Annealed and the to-be-tempered versions of the product offer similar performances and aesthetic with a good compatibility in outdoor reflection. Contact us for more details
