COOL-LITE® KS 147
PRODUCT DESCRIPTION
COOL-LITE® KS 147 can be used annealed for applications where no heat-treatment is required; it can be combined with many Saint-Gobain Glass products for enhanced performance or new functions.
BENEFITS & APPLICATIONS
Thanks to its silver aesthetics, the product blends in well with different environments or, on the contrary, can be used to create differentiating facades in certain markets.
- Aesthetic: Silver reflective outer appearance, to blend in or stand out.
- Solar control: by allowing less than a third of the sun's heat to pass through at all times, it contributes to the comfort and energy efficiency of buildings.
COOL-LITE® KS 147 is an ideal option for all types of facade, dedicated to both non-residential (office buildings, stores, hotels, restaurants, etc.), and residential usages with an outstanding visual result.
It should be noted that COOL-LITE® KS 147 and KS 146 II have different performances and aesthetics and it is not recommended to combine them on the same facade.
APPEARANCE
COOL-LITE® KS 147 is offering a neutral aesthetic in transmission with silver reflections from outside.
TECHNICAL INFORMATION
RANGE
SUBSTRATE: PLANICLEAR® (clear glass)
DIAMANT® (extra clear glass)
THICKNESS: From 4mm to 10mm
SIZE: Standard size (Jumbo 3.21 x 6.00 m)
Standard stock size
PROCESSING
- ANNEALED: The product required no heat-treatment.
- EDGE DELETION: Edge deletion of the coating is compulsory prior to assembling.
- INSULATED GLAZING UNIT: The product must be assembled into an insulated glazing unit (IGU); The coating must be positioned on the face 2 (inside the IGU).
- LAMINATION: The product can be laminated, taking care to place the coating outside of the laminate (coating on face 4 of the laminated pane). Consult us for the list of coatings validated in contact with the interlayer.
The product is available WORLDWIDE.

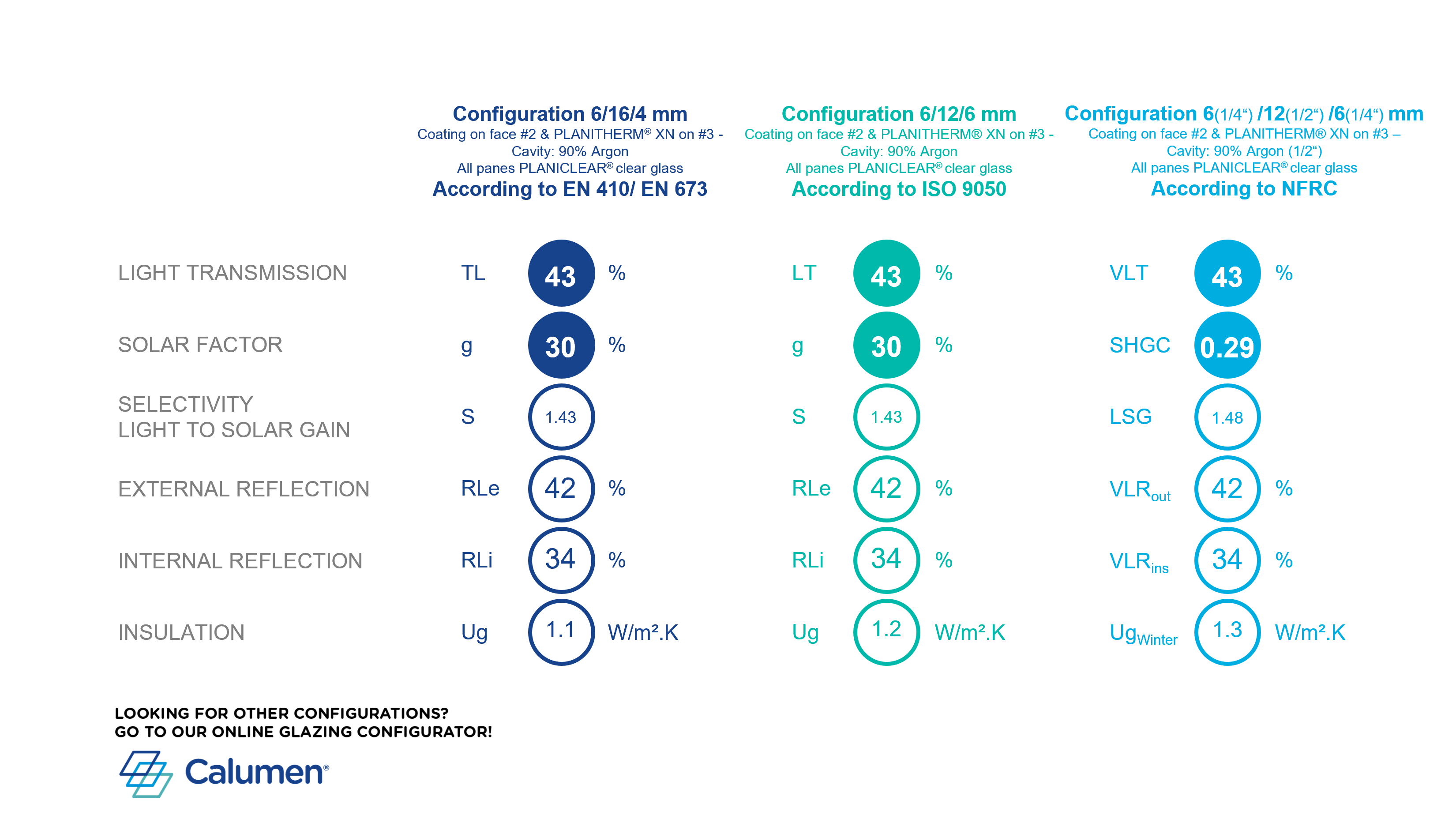

PERFORMANCE
Looking for more configurations? Go to our online glazing configurator: www.calumen.com
