COOL-LITE® KG 137 Annealed and Tempered
PRODUCT DESCRIPTION
COOL-LITE® KG 137 exist in both versions, tempered, or annealed, depending on the requirements of the building in which it is integrated. Heat-treated or not, performances and aesthetics are however different.
BENEFITS & APPLICATIONS
With its golden aesthetics, this product meets a wide range of needs in many markets, for elegant, distinctive facades or facade elements, or for renovation work on listed buildings.
- Aesthetic: golden reflective outer appearance.
- Solar control: by allowing less than a third of the sun's heat to pass through at all times, it contributes to the comfort of occupants and energy efficiency of buildings.
APPEARANCE
COOL-LITE® KG 137 is offering a golden reflective aesthetic from outside.
TECHNICAL INFORMATION
RANGE
SUBSTRATE: PLANICLEAR® (clear glass)
DIAMANT® (extra clear glass)
THICKNESS: From 4mm to 10mm
SIZE: Standard size (Jumbo 3.21 x 6.00 m)
Standard stock size
PROCESSING
- HEAT-TREATMENT: COOL-LITE® KG 137 exist in both versions (tempered and annealed); When used heat-treated or not, performances and aesthetics of the two products are different and it’s not recommended to mix them on the same façade
- EDGE DELETION: Edge deletion of the coating is compulsory prior to assembling.
- INSULATED GLAZING UNIT: The product must be assembled into an insulated glazing unit (IGU); The coating must be positioned on the face 2 (inside the IGU).
- LAMINATION: The product can be laminated, taking care to place the coating outside of the laminate (coating on face 4 of the laminated pane). Consult us for the list of coating validated in contact with the interlayer.
- ENAMELING: No common approval for the enameling of silver-based high-performance coatings.
AVAILABILITY
The product is available WORLDWIDE.

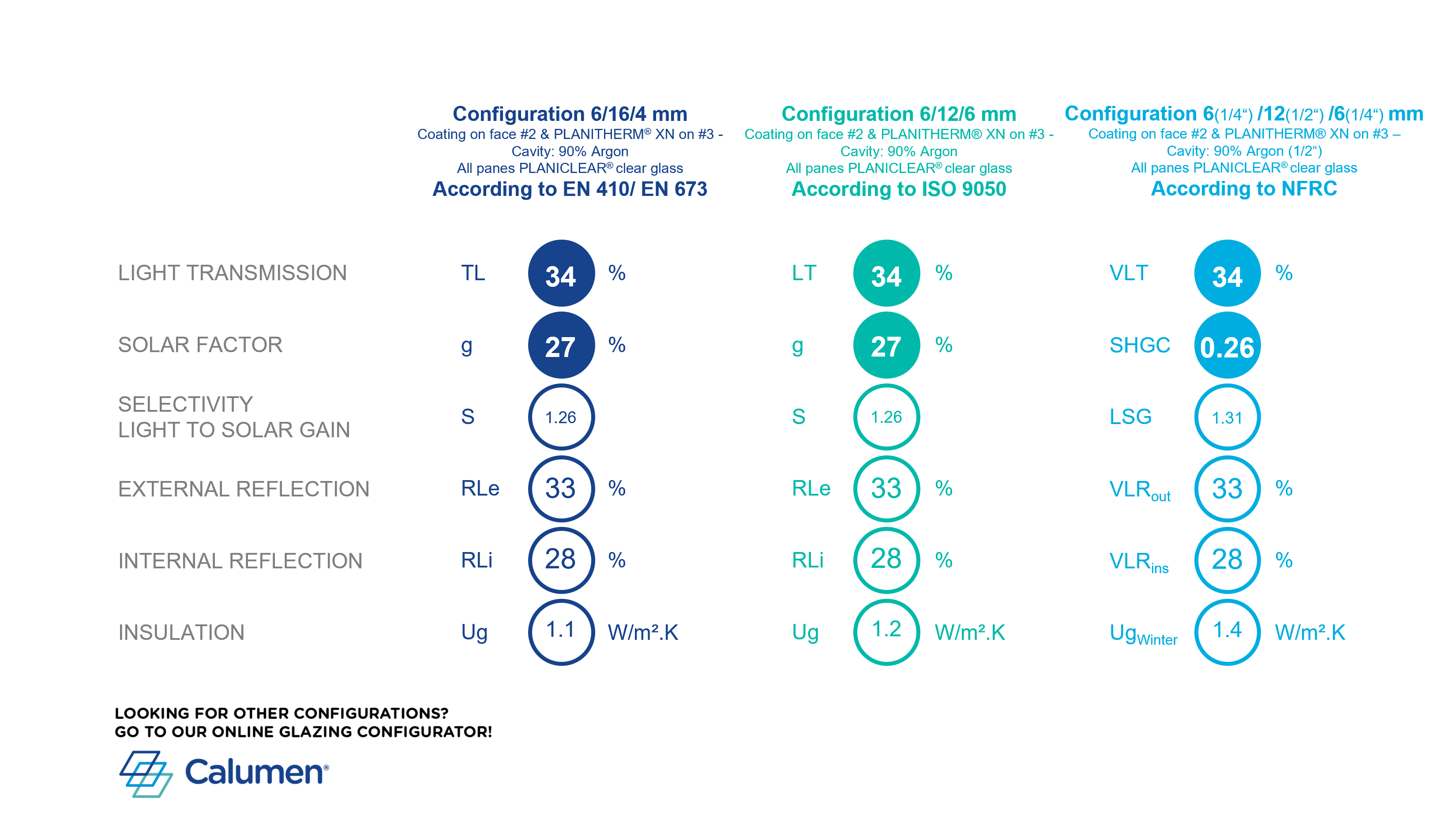

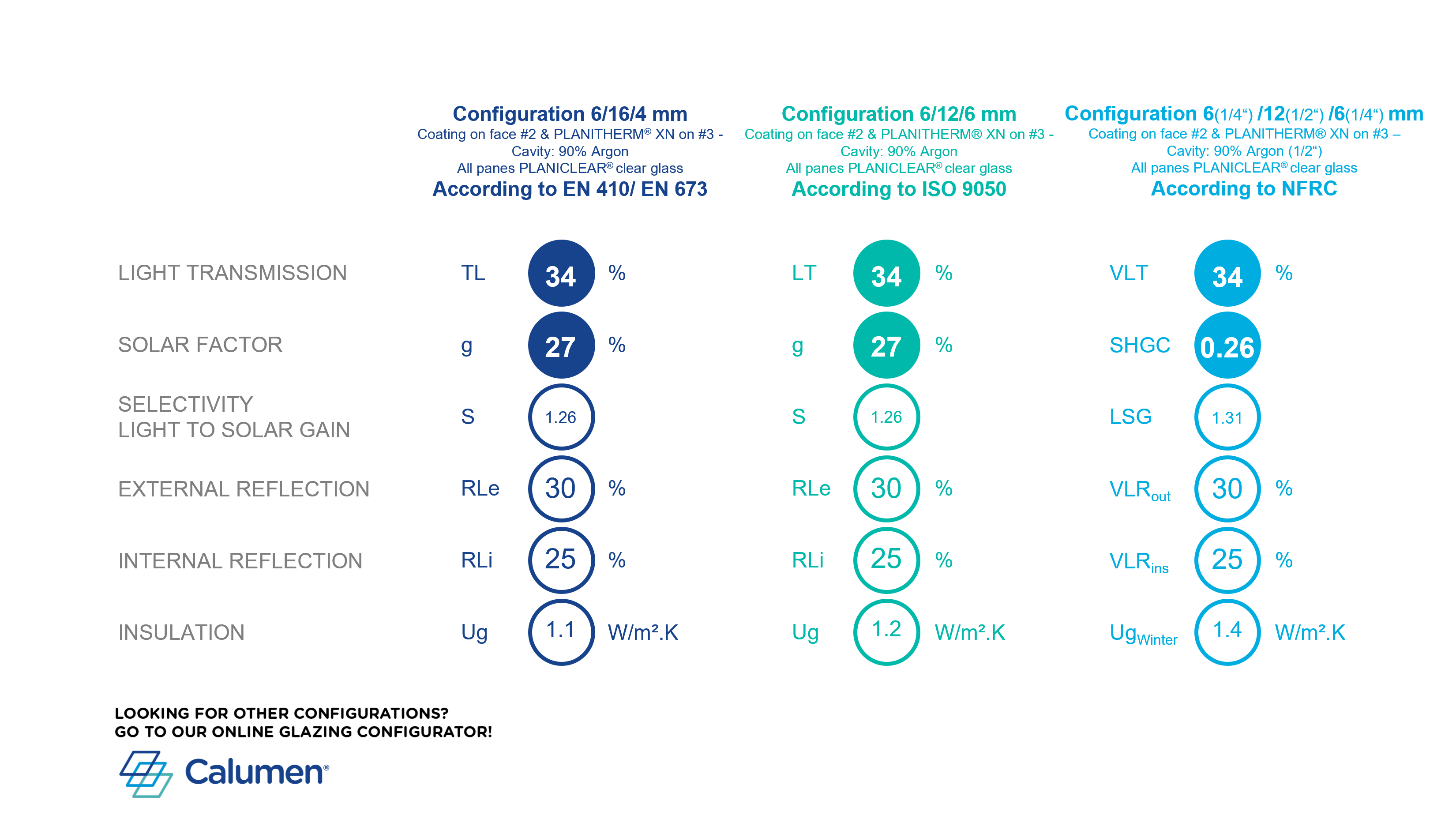

PERFORMANCE
Looking for more configurations? Go to our online glazing configurator: www.calumen.com
